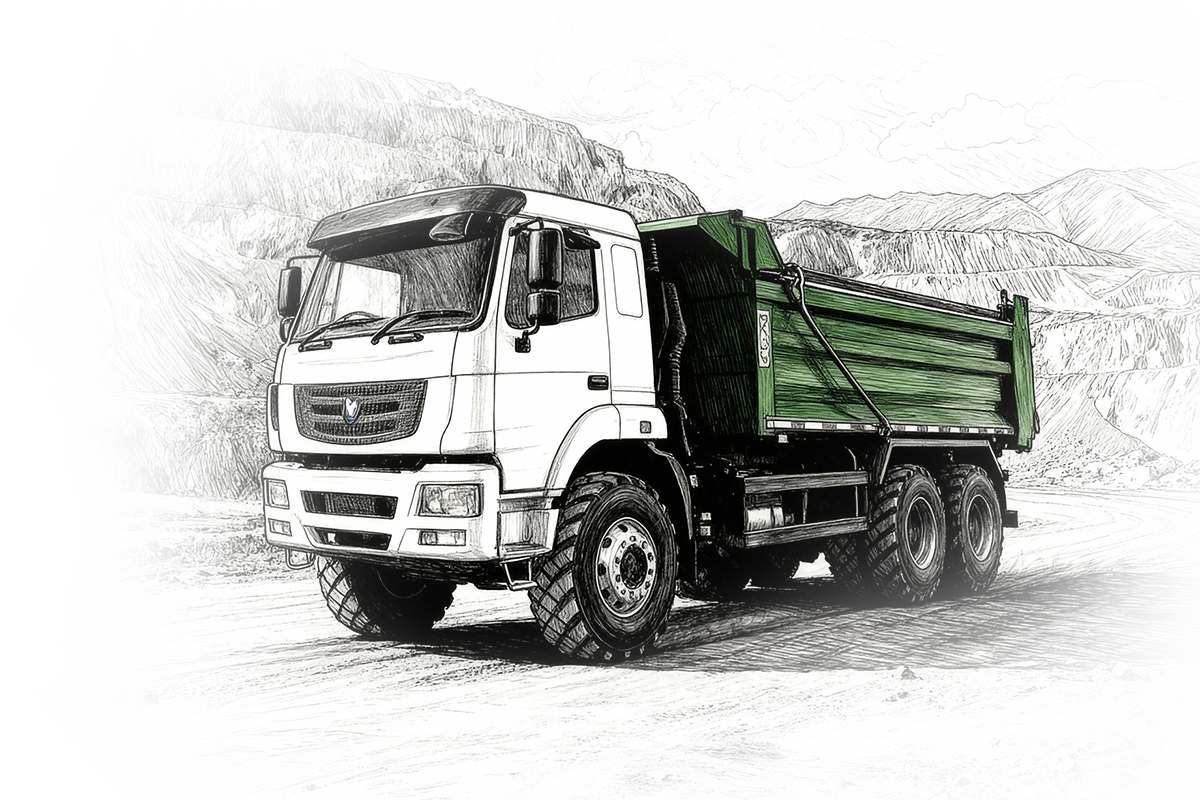

MAB E-DUMP 6X4
MAB 6X4
PURE ELECTRIC DUMP TRUCK
The MAB 6×4 electric dump truck is designed for modern industrial and construction applications, powered by a 330 kW motor (peak 450 kW) with torque up to 3000 Nm, a top speed of 80 km/h, and a driving range of 150–200 km per charge.
Built on a robust 6×4 chassis with a gross vehicle weight of 50,000 kg, it features 4-channel ABS, drum brakes, 11.00r20 tires, and safety systems including Hill Start Assist, slope descent control, CBS, and drive anti-skid.
The cabin is safe and comfortable, equipped with air conditioning, maintenance-free battery, 24-hour battery monitoring, and standard safety devices. Connectivity features include OTA updates, remote vehicle status, energy management, and track query. The 6×4 Electric Dump Ttruck combines power, safety, efficiency, and sustainability, providing an ideal solution for modern industrial transportation.
SPECIFICATION 6x4 DUMP TRUCK
General
- Drive Type: 6×4
- Suspension: Multi-Leaf Spring, Integral Balance Shaft Suspension
- Max Speed: 80 km/h
- Max Gradeability: 30%
- Mileage Range: 150–200 km
- Charging Port: CCS2
- Front Axle: 9.5t
- Rear Axle: 2 × 16t
- Braking Type: Front and Rear Drum
Dimensions
- Drive Type: 6×4
- Suspension: Multi-Leaf Spring, Integral Balance Shaft Suspension
- Max Speed: 80 km/h
- Max Gradeability: 30%
- Mileage Range: 150–200 km
- Charging Port: CCS2
- Front Axle: 9.5t
- Rear Axle: 2 × 16t
- Braking Type: Front and Rear Drum
Motor
- Drive Type: 6×4
- Suspension: Multi-Leaf Spring, Integral Balance Shaft Suspension
- Max Speed: 80 km/h
- Max Gradeability: 30%
- Mileage Range: 150–200 km
- Charging Port: CCS2
- Front Axle: 9.5t
- Rear Axle: 2 × 16t
- Braking Type: Front and Rear Drum
